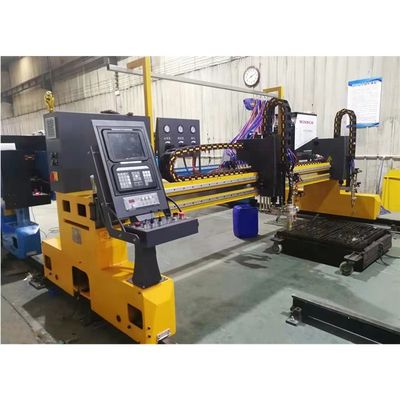

1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel
  • name
  • name
  • name
  • name
  • name
  • name

1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel

Price: $8,900.00/pieces 1-2 pieces
Standard Packaging: Wooden box
Supply Capacity: 300 Piece/Pieces per Month
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
ANXU
Certification
CE
Model Number
AX-1530
Motor Type:
Stepper Motor, SERVO MOTOR
Condition:
New
Voltage:
220V/380V
Rated Power:
5000W
Dimension(L*W*H):
Customized
Weight (KG):
1700 KG
Warranty:
1 Year
Key Selling Points:
Motor, PLC
Applicable Industries:
Manufacturing Plant
Showroom Location:
South Africa
Marketing Type:
New Product 2020, Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC
Product Name:
Oxyfuel Type Flame / Plasma Cutting Machine For Stainless Steel
Keyword:
Multi Head Plasma Flame Cutting Machine
After-sales Service:
Video Guidance
Dimensions:
4*10 M Or Customized
Plasma Cutting Thickness:
1-50mm (pierce Carbon Steel)
Plasma Cutting Speed:
0-4000mm/min
Flame Cutting Thickness:
6-200mm
Port:
Qingdao Port
Product Description
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 0
1530Hdx Mini Portable Heavy Cnc Big Gantry Laser Oxyfuel Type Flame / Plasma Cutting Machine For Stainless Steel
1,Multi Torch Straight Line Rail Guide Plasma Flame Cutting Machine Steel Plate Cutter 1. Main Frame: All frames adopt 8 mm thickness steel plate, making sure high mechanical strength and deformation resistance to guarantee the cutting precision.
2.Front Beam adopt 20 mm thickness steel plate and processed by large cnc milling machine at one time which increase flatness and smoothness of surface to ensure the cutting precision.
3.The gear rack groove and guide rail groove on the front beam are processed by cnc milling machine at one time, which make sure plasma and frame torches move stable and cut accuracy.
4.Hollow Design: The beam adopts hollow design to avoid frame deformation caused by heat .
Specification
Item
Specification




Horizontal track space(mm)
3000
4000
5000
6000
8000
Effective cutting width(mm)
2300
3200
4200
5200
7200
Overall width(mm)
3500
4300
5500
6500
8500
Cutting mode
flame only,plasma only,flame and plasma




Driving method
rack and pinion drive for X and Y axes




Driving mode
double-side driving




Flame cutting thickness
6-200mm




Plasma cutting thickness
0-50mm(according to plasma power source)




Cutting speed
0-6000mm/min




Empty stroke speed
0-10000mm/min





Automatic height controller
capacitive height control for flame cutting





arc voltage height control for plasma cutting




Product Description
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 1
Rack structure:
The cross beam adopts the German Messel technology and gantry frame, which can eliminate the torsion better. The crossbeam is a
non-rectangular tube structure of the box steel structure. After welding, it is annealed entirely to eliminate the internal stress
so that it will not deform in long-term use. The stable frame structure makes the cutting precision higher and the cutting speed
faster.
,
Guide:
A horizontal guideway adopts a domestic or imported double axle core linear guideway with high precision and good guidance.
Longitudinal guide rail with a grinding surface made of special metal has high mechanical accuracy and wear resistance.
A horizontal guideway adopts a domestic or imported double axle core linear guideway with high precision and good guidance.
Longitudinal guide rail with a grinding surface made of special metal has high mechanical accuracy and wear resistance.

1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 2
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 3

Nesting software:

Choose common edge, bridge, continuous cutting, micro-connection, and other cutting processes to improve the utilization rate of
sheet metal, cutting efficiency.


The straight flame cutting device

A straight flame cutting device can be installed on the back of the gantry CNC cutting machine to complete the straight cutting of carbon steel metal.

1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 4
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 5
Cutting Example
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 6
Company Profile
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 7
ANXU is specialized in R&D, manufacturing and marketing of large scale CNC cutting machines and welding equipment. Our main products include CNC plasma cutting machine, gantry plasma cutting machine, CNC punching machine, laser cutting machine, 3D laser cutting machine, 3D welding machine and so on. As a domestic specialized CNC researching company, we dedicate to providing excellent after-sale service, technology-leading and reliable products as well as integrated technology solutions for our business partners.
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 8
Exhibition
1530Hdx Mini Flame Cutting Machine Portable Heavy CNC For Stainless Steel 9

FAQ AND CONTACT US
Q1: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts
installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q2:How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q3: Are you factory or trading company?
A: We are a factory with many experience. Q: What's your MOQ? A: We don't have MOQ. No matter 1set order or
100sets order, we will give you support with our heart and soul.

Q4:If there is some problems for some parts during warranty period, will your company repair or replace for me?
A:Yes, we will.Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.

Q5:Can I buy spare parts from your company if I have spare parts in the future?
A:Yes, please. Our company supply spare parts for all of our machine.

Q6:Give me reasons to chose your company ?
1)Professional factory with competitive price;
2)High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4)Strict implementation of after-sales warranty. 5)The important is that you will receive the Corresponding goods after you do payment.
